Quick Start Guide¶

**Quick Start Guide - ISX031 8*Channel GMSL2 Camera Kit**¶

Product Image	SKU	Shutter Type	Sensor	Resolution	Features	Lens Mount	Field of View(HxV)	Focus Type	IR Sensitivity
	B0608	Rolling Shutter	ISX031	3MP	8*Camera Kit, Ultra HDR, Built-in ISP, IP67	M12 Mount	152°(D)×120°(H)×92.8°(V)	Fixed Focus	650nm IR-cut filter

Device List¶

Device	Quantity
NVIDIA Jetson AGX Orin	1pcs
Arducam ISX031 GMSL2 Camera Module	8pcs
8*Channel GMSL2 Deserializer Board	1pcs
FAKRA Coax Cable	8pcs

Hardware Connection¶

Note: The DIP switch settings for the Deserializer board should be configured as follows, and the standard power supply is 12V DC.

Install environment dependencies¶

sudo apt install v4l-utils
sudo apt install nvidia-l4t-gstreamer

Install Driver Package¶

Version Notice

Currently, only NVIDIA Jetson Linux Version 36.5.0 and above are supported.
Command to check Jetson Linux Version: `cat /etc/nv_tegra_release`
NVIDIA Jetson Linux Version: **36.5.0**:
<img src="https://cdn.arducam.com/wp-content/uploads/2026/05/arducam_wiki_b0608_isx031_gmsl_8_camera_picture_3.png">

Download bash script

cd ~ && wget https://github.com/ArduCAM/MIPI_Camera/releases/download/v0.0.3/install_full.sh

Install ISX031 Driver

chmod +x install_full.sh
./install_full.sh -m isx031_gmsl

Check Camera Detection

Restart NVIDIA Jetson AGX Orin after installation.

ls /dev/video*

Run the Camera¶

Download the run.sh script file to the NVIDIA Jetson AGX Orin device.

Add executable permissions

chmod +x ./run_8cams.sh

Run the camera kit

./run_8cams.sh

Stop Streaming¶

Download the stop.sh script file to the NVIDIA Jetson AGX Orin device.

Add executable permissions

chmod +x ./stop_all_cams.sh

Stop streaming

./stop_all_cams.sh

Demonstration¶

**Quick Start Guide - Robotics Vision 8*Camera GMSL Kit**¶

Product Image	SKU	Shutter Type	Sensor	Resolution	Features	Lens Mount	Field of View(HxV)	Focus Type	IR Sensitivity
	B0580	Global Shutter	AR0234	2.3MP	8*Camera Kit, Synchronized Stereo(binocular)	M12 Mount	110°(D)×98°(H)×75°(V)	Fixed Focus	650nm IR-cut filter

Hardware Connection¶

Adjust the DIP switch

First, you need to turn both switch 1 and switch 2 to the ON state

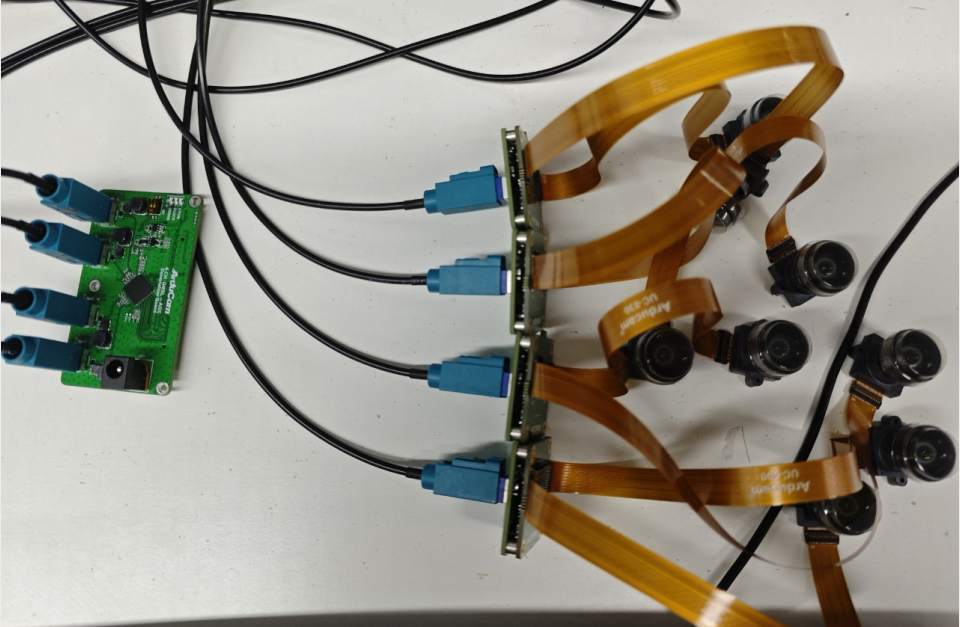

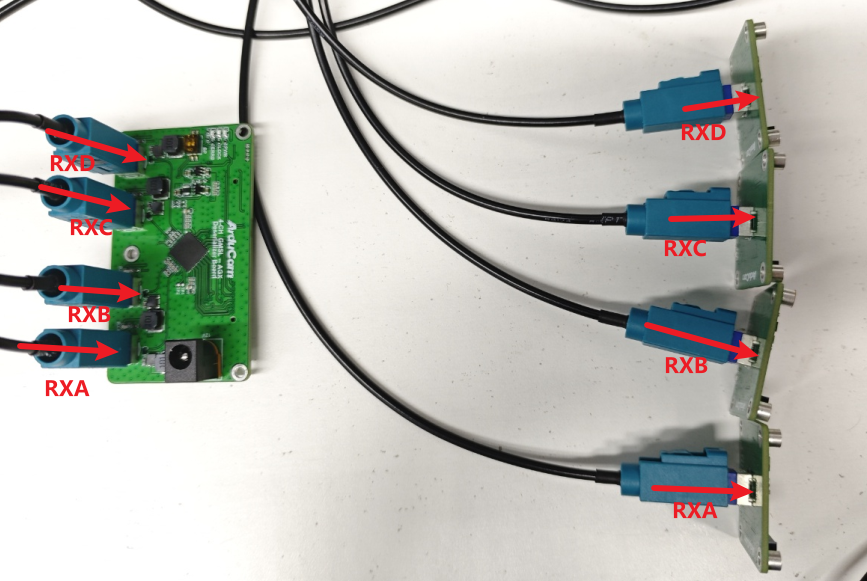

Conenct GMSL Extension Cable

Connect one end of the four coaxial cables to the RXA/RXB/RXC/RXD channels of the camera assembly TX board respectively

Connect the other end to the GMSL RX adapter board

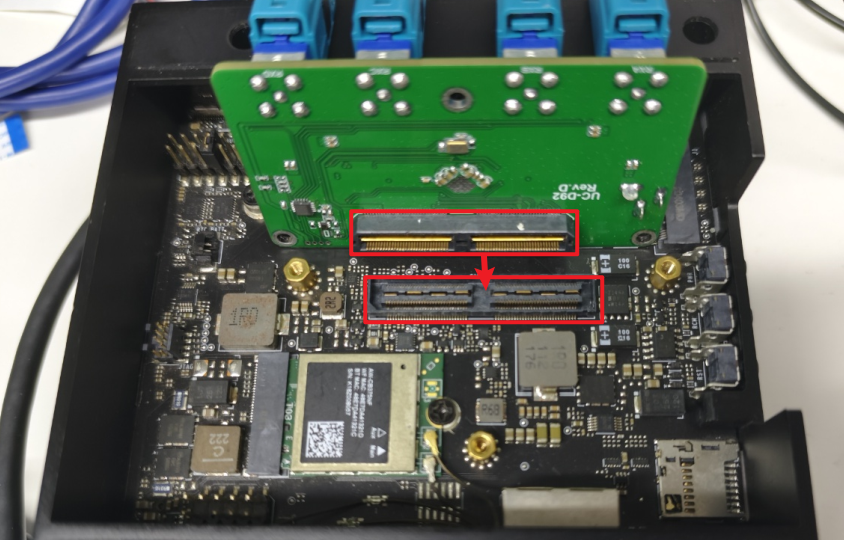

Conenct NVIDIA AGX Orin

Connect the GMSL RX adapter board to the NVIDIA AGX Orin connector

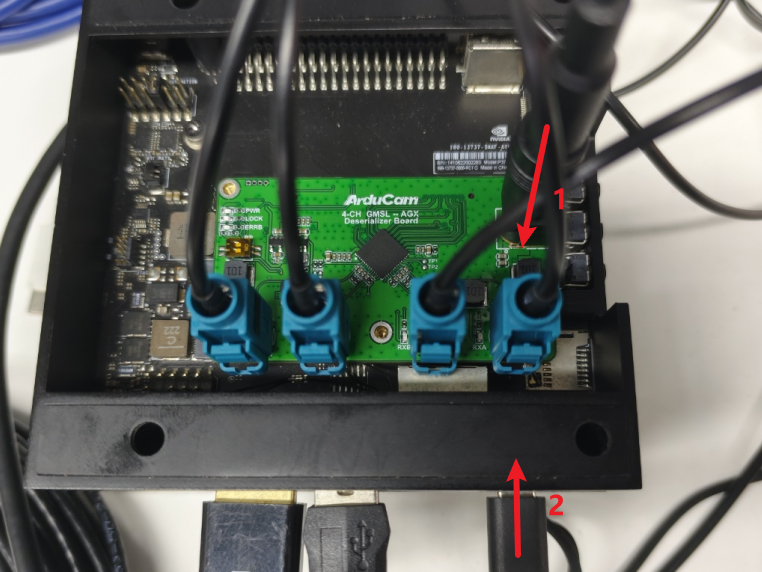

Power on

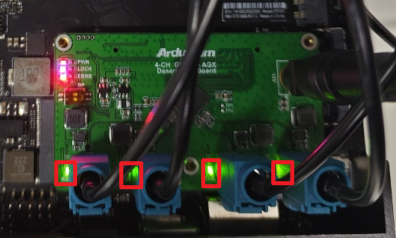

Connect the external 12V power supply first, then power on the NVIDIA Jetson AGX Orin. The corresponding channel light will light up.

Software Guide¶

Install Camera Driver¶

cd ~ && wget https://github.com/ArduCAM/MIPI_Camera/releases/download/v0.0.3/install_full.sh
chmod +x install_full.sh
./install_full.sh -m arducam_gmsl # Reboot your system to take effect

Usage Environment¶

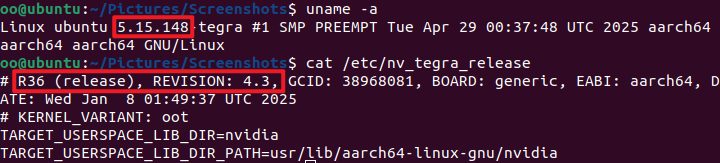

NVIDIA Jetson test L4T version: 36.4.3, Jetpack 6.2

Preview¶

Open qv4l2

# Channel A:
qv4l2 -R -d /dev/video0
# Channel B:
qv4l2 -R -d /dev/video1
# Channel C:
qv4l2 -R -d /dev/video2
# Channel D:
qv4l2 -R -d /dev/video3

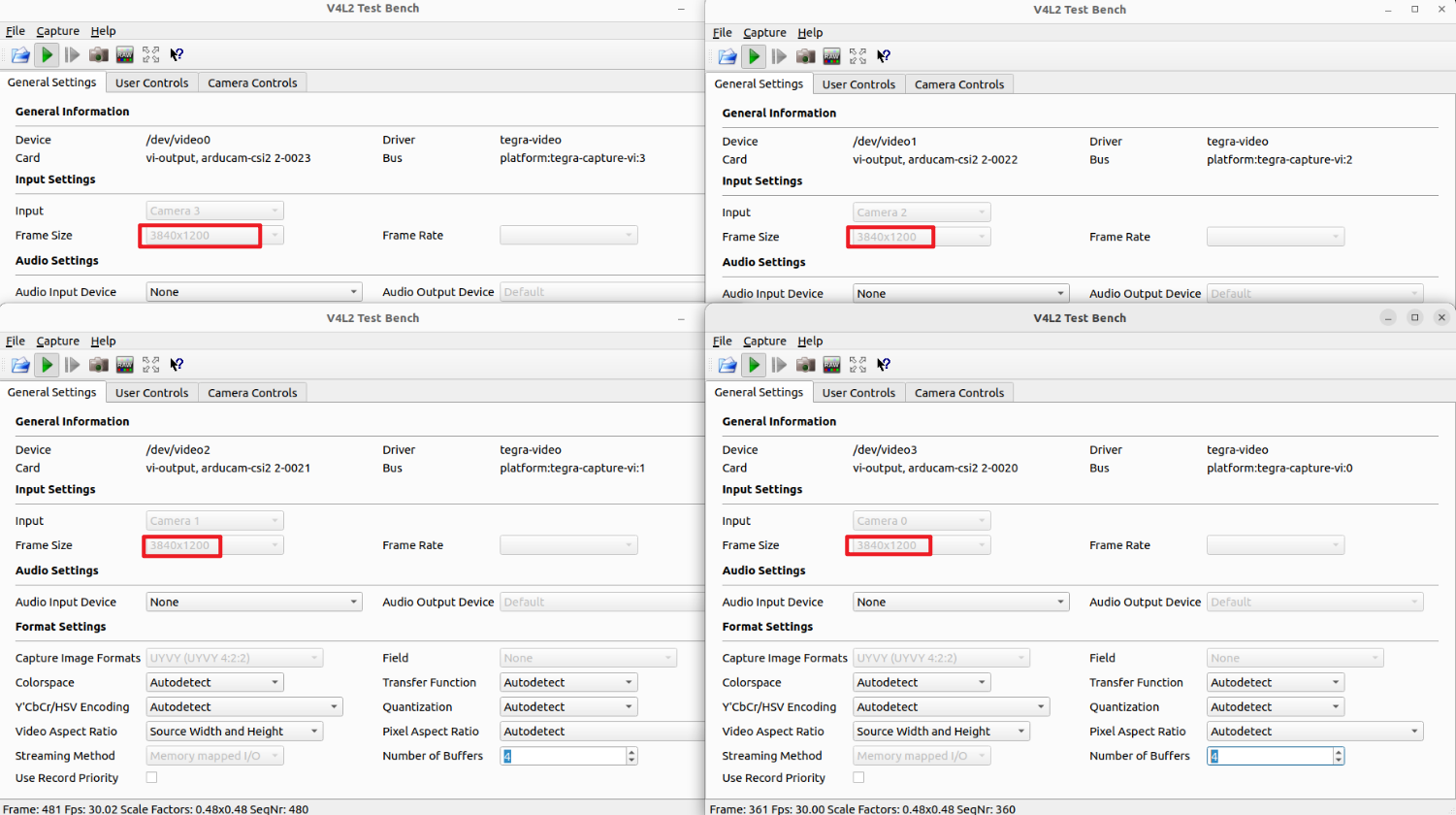

Set Resolution

Select the resolution in the UI window and set Streaming Method to Memory mapped I/O

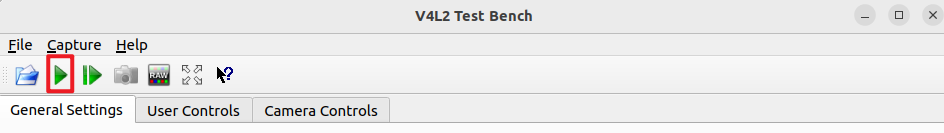

Execute

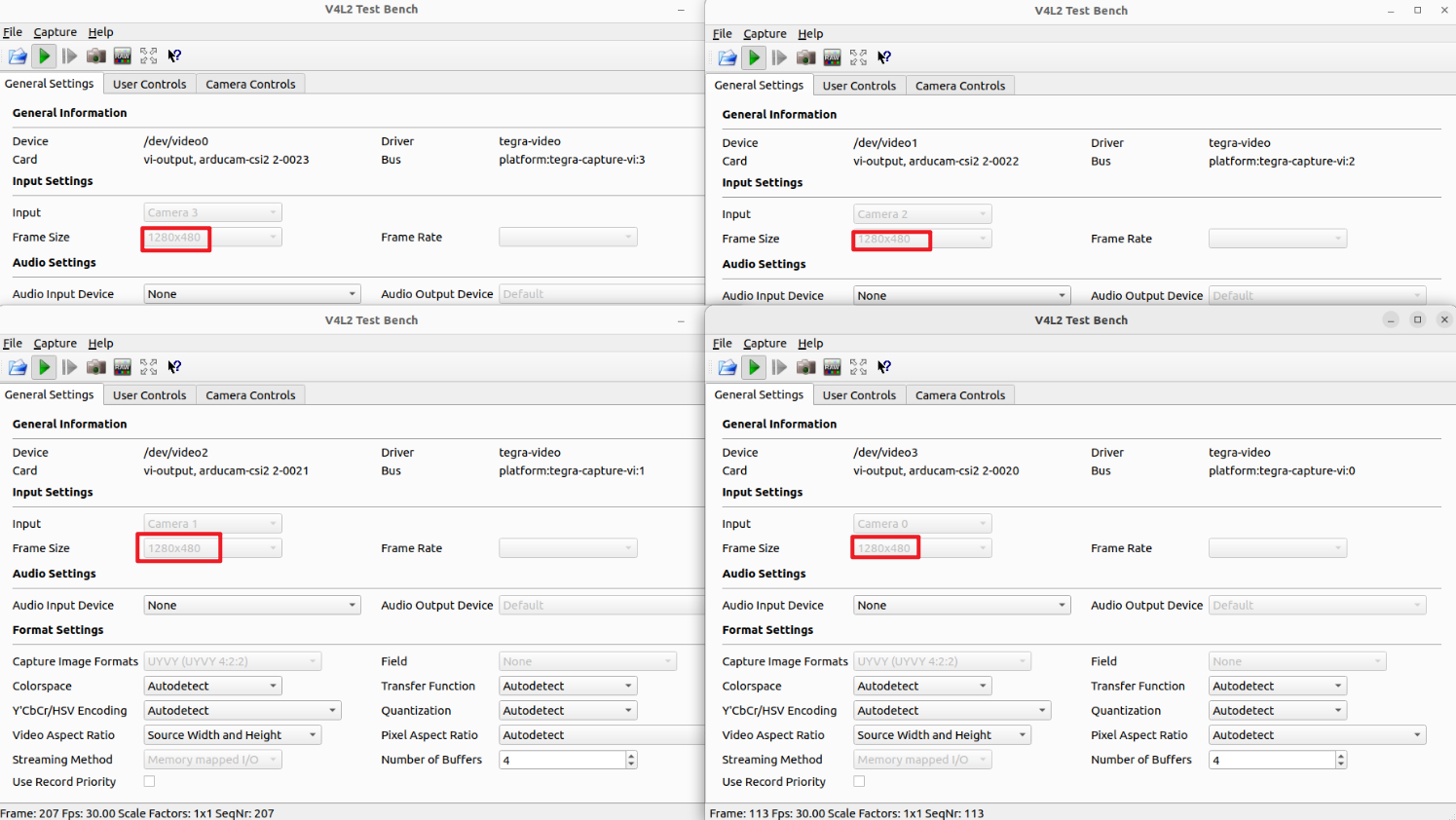

Resolution & Frame Rate¶

3840x1200@30fps

2560x720@30fps

1280x480@30fps

Quick Start Guide - NVIDIA Jetson Native Camera¶

The following tutorial is suitable for the camera kits below:

Product Image	SKU	Pin/Connect Type	Sensor	Resolution	Features	Lens Mount	Field of View(HxV)	Focus Type	IR Sensitivity
	B0472	15/bottom	IMX219	8MP	6xCam Kit	Stock Lens Mount	74°(D)	Fixed Focus	650nm IR-cut filter
	B0473	15/bottom	IMX477	12MP	6xCam Kit	M12 Mount	120°(D)	Fixed Focus	650nm IR-cut filter

Hardware Connection¶

Note

The access of all Arducam camera kits must be based on NVIDIA Jetson AGX Orin official kits, Arducam dedicated camera adapter boards, and systems we support.
You can refer to the following doc to get all versions and systems supported on NVIDIA Jetson AGX Orin: Click Here

Connect the Adapter Board with NVIDIA Jetson AGX Orin

Connect the male connector on the camera adapter board to the female connector on the AGX Orin Board

Please try to make this process as gentle as possible. You can see the connection diagram below:

Note

The NVIDIA Jetson AGX Orin camera board supports 6x MIPI CSI interfaces, which can be connected up to 6 cameras (currently only 6 of the same camera are supported, if you need other combinations, please contact sales@arducam.com for customization). Each MIPI CSI interface currently only supports 2-lane configuration.

Connect the Camera Module

Pull up on the plastic edge of the camera port. Be gentle to avoid pulling it off.

Demonstration:

Ribbon cable fully inserted to the bottom of the CSI connector>>>

Push the plastic connector down. Do it while holding the flex cable until the connector is back in place.

Connection Diagram:

Attention!

Note

SENSOR_ID indicates the selected camera. This value does not correspond to the silkscreen on the camera board.

It is sorted according to the direction starting from the silkscreen camera0 on the camera board.

For example, when all six MIPI csi interface are connected to the camera, the corresponding SENSOR_ID value is 0. 1, 2, 3, 4, 5.

For example, when you connect all six cameras to the MIPI CSI interface, the corresponding SENSOR_ID values are like:

If don't use the cam2 MIPI csi interface:

Software¶

Supported Platforms and JetPack L4T versions¶

Please refer to the following doc for specific supported Platforms and JetPack versions:

Supported Platforms and JetPack Version - Arducam Camera for NVIDIA Jetson

For IMX219 Camera Module

¶

Install Camera Driver

cd ~
wget https://github.com/ArduCAM/MIPI_Camera/releases/download/v0.0.3/install_full.sh
chmod +x ./install_full.sh
./install_full.sh -m imx219

Reboot

sudo reboot

Check Resolution&Frame Rate via V4L2

v4l2-ctl --list-formats-ext

Access the Camera Kit

For the three values of FRAMERATE, width, and height, please fill in the configuration you want to use according to the resolution and frame rate information obtained by v4l2-ctl (do not exceed the upper limit of the frame rate corresponding to the resolution)

SENSOR_ID=0
FRAMERATE=21
width=3280
height=2464
gst-launch-1.0 nvarguscamerasrc sensor-id=$SENSOR_ID ! "video/x-raw(memory:NVMM),width=$width,height=$height,framerate=$FRAMERATE/1" ! nvvidconv ! nveglglessink -e

For IMX477 Camera Module

¶

Install Camera Driver

cd ~
wget https://github.com/ArduCAM/MIPI_Camera/releases/download/v0.0.3/install_full.sh
chmod +x ./install_full.sh
./install_full.sh -m imx477

Reboot

sudo reboot

Check Resolution&Frame Rate via V4L2

v4l2-ctl --list-formats-ext

Access the Camera Kit

For the three values of FRAMERATE, width, and height, please fill in the configuration you want to use according to the resolution and frame rate information obtained by v4l2-ctl (do not exceed the upper limit of the frame rate corresponding to the resolution)

SENSOR_ID=0
FRAMERATE=21
width=4032
height=3040
gst-launch-1.0 nvarguscamerasrc sensor-id=$SENSOR_ID ! "video/x-raw(memory:NVMM),width=$width,height=$height,framerate=$FRAMERATE/1" ! nvvidconv ! nveglglessink -e

For IMX519 Camera Module

¶

Install Camera Driver

cd ~
wget https://github.com/ArduCAM/MIPI_Camera/releases/download/v0.0.3/install_full.sh
chmod +x ./install_full.sh
./install_full.sh -m imx519

Reboot

sudo reboot

Check Resolution&Frame Rate via V4L2

v4l2-ctl --list-formats-ext

Access the Camera Kit

For the three values of FRAMERATE, width, and height, please fill in the configuration you want to use according to the resolution and frame rate information obtained by v4l2-ctl (do not exceed the upper limit of the frame rate corresponding to the resolution)

SENSOR_ID=0
FRAMERATE=9
width=4656
height=3496
gst-launch-1.0 nvarguscamerasrc sensor-id=$SENSOR_ID ! "video/x-raw(memory:NVMM),width=$width,height=$height,framerate=$FRAMERATE/1" ! nvvidconv ! nveglglessink -e
