IMX500 GMSL RPI5 All-in-one Kit

Hardware Preparation

---

1. The built-in SD card of this product already contains all the required environments.

2. Equipment you may need: Monitor, HDMI cable, mouse, keyboard

3. Please don't run the commands sudo apt-get update and sudo apt-get upgrade on the terminal. It will make the Raspberry Pi unable to detect the camera.

Software Operation

---

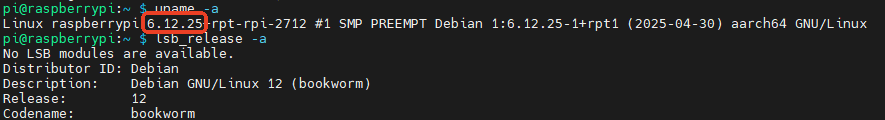

Raspberry Pi OS version:

Preview

---

Set resolution at 2028x1520

libcamera-still -t 0 --viewfinder-width 2028 --viewfinder-height 1520

Set resolution at 4056x3040

libcamera-still -t 0 --viewfinder-width 4056 --viewfinder-height 3040

Switch the Channel

---

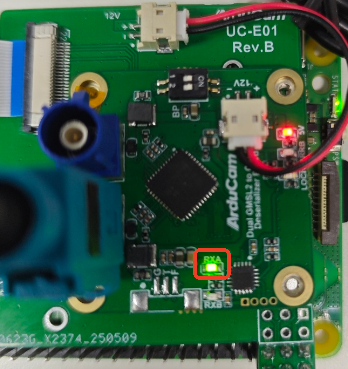

• Switch to Channel A

Power off

Connect to Channel A Connector

Power on

RXA Light on

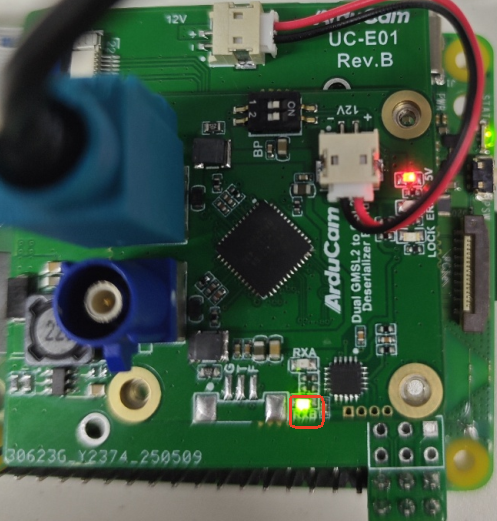

• Switch to Channel B

Power off

Connect to Channel B Connector

Power on

RXB Light on

AI Demo

---

Please refer to the Raspberry Pi official documentation for the AI Demo quick start guide of IMX500 AI Camera Module:

Getting Started with Raspberry Pi AI Camera
