Arducam’s One-stop Vision AI Solution¶
Introduction¶
The Concept¶
-
Powered by Sony’s IMX500 AI Vision Sensor
-
Enhanced with Sony’s Edge AI sensing platform, AITRIOS™
-
Extended with Raspberry Pi AI Camera

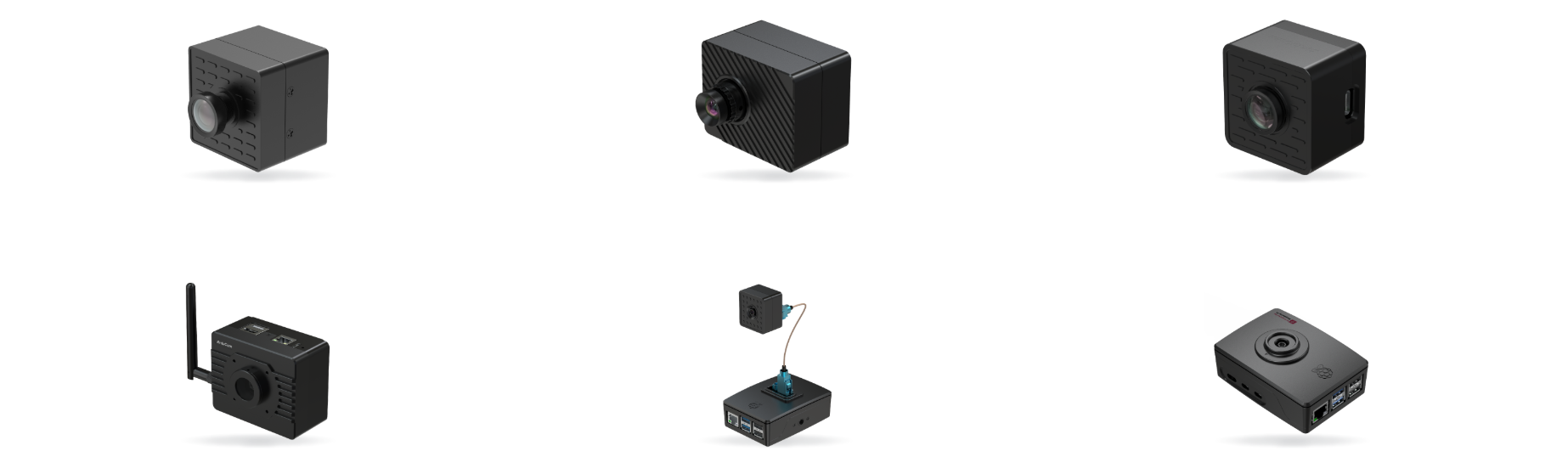

The Device¶
The Matrix¶
This matrix outlines our modular AI camera lineup, categorized by solution type (standalone modules vs. all-in-one systems) and platform compatibility (MCU, UVC, Raspberry Pi). Each option balances form factor, power efficiency, and plug-and-play usability for seamless edge deployment.
The Specs¶
Learn More¶
For more detailed information about Arducam's AI Camera solution with SONY's AITRIOS™ Edge AI Sensing Platform, please refer to:
Products¶
| Product Image | SKU | Controller/OS | Max Resolution | Lens Mount | Resolution@fps | Camera Interface | Power Supply | Housing Type | Dimension | FOV(DxHxV) |
|---|---|---|---|---|---|---|---|---|---|---|
![]() |
B0563 | RPI CM5 | 12.3MP | Stock Lens Mount | 2028x1520@30fps, 4056x3040@10fps; | MIPI CSI | POE/USB | CNC | 90x45x73mm | 78°x66°x52.3° |
![]() |
B0540 | RPI 5 | 12.3MP | Stock Lens Mount | 2028x1520@30fps, 4056x3040@10fps; | MIPI CSI | USB | RPI Official Case | 98.5x70.3x37.5mm | 78°x66°x52.3° |
![]() |
B0571 | RPI 5 | 12.3MP | Stock Lens Mount | 2028x1520@30fps, 4056x3040@10fps; | MIPI CSI | GPIO/USB | RPI Official Case | 98.5x70.3x37.5mm | 78°x66°x52.3° |
![]() |
B0564 | All MCUs | 12.3MP | M12 Mount | 320x320@20fps; | SPI/USB | External Battery | CNC | 39x39x29mm | 113°x100°x83° |
![]() |
B0565 | RP2040 | 12.3MP | M12 Mount | 320x320@20fps; | POE/USB | POE/USB | CNC | 44x54x732m | 113°x100°x83° |
![]() |
B0566 | Windows/Linux | 12.3MP | M12 Mount | With AI: 2016x1520@10-20fps Without AI: 4056x3040@5-12fps, 2016x1520@15-40fps; |
USB3 | USB | CNC | 38x38x37mm | 113°x100°x83° |
Additional Resources¶
Quick Start Guide¶
B0581 - Arducam CM5 All-in-one IMX500 AI Camera Kit
B0566 - Arducam IMX500 USB3 UVC Camera
B0571 - Arducam RPI5 All-in-one IMX500 GMSL Camera Extension kit
AI Model Zoo¶
Arducam AI Camera Solution - AI Model Zoo
Github - Arducam AI Model Zoo Source Code
AI Model Converter¶
Note
The AI Model converter is specially for Arducam B0564(MCU AI)/B0565(PoE-Lite)/B0566(USB3 UVC) Camera Module
Arducam AI Model Converter Service
