MIPI xISP for Ezurio¶
Introduction¶
Overview¶
Arducam has established an in-depth strategic collaboration with Ezurio — a global leader in wireless connectivity technology — to pioneer a new era in embedded vision systems. Following the launch of the lightweight OV5645 embedded camera developed by both parties, Arducam and Ezurio have deepened the win-win cooperation and set the sights on the Arducam MIPI xISP series of cameras with even powerful performance and better ISP effects.
We prioritize compatibility breakthroughs and partner ecosystem development at every stage, delivering vision solutions for embedded systems worldwide with superior integration, broader adaptability, and future-ready extensibility.
Product¶
| Product Image | SKU | Resolution | Active Pixels | Interface | Features | Focus Type | Focus Distance | Field of View(DxHxV) | IR Sensitivity |
|---|---|---|---|---|---|---|---|---|---|
 |
B0582 | 8.3MP | 3840×2160 | MIPI CSI-2 | Ultra Low Light | Fixed Focus | 3m-∞ | 100°(D) × 88°(H) × 72°(V) | Integral IR-cut Filter |
Quick Start Guide¶

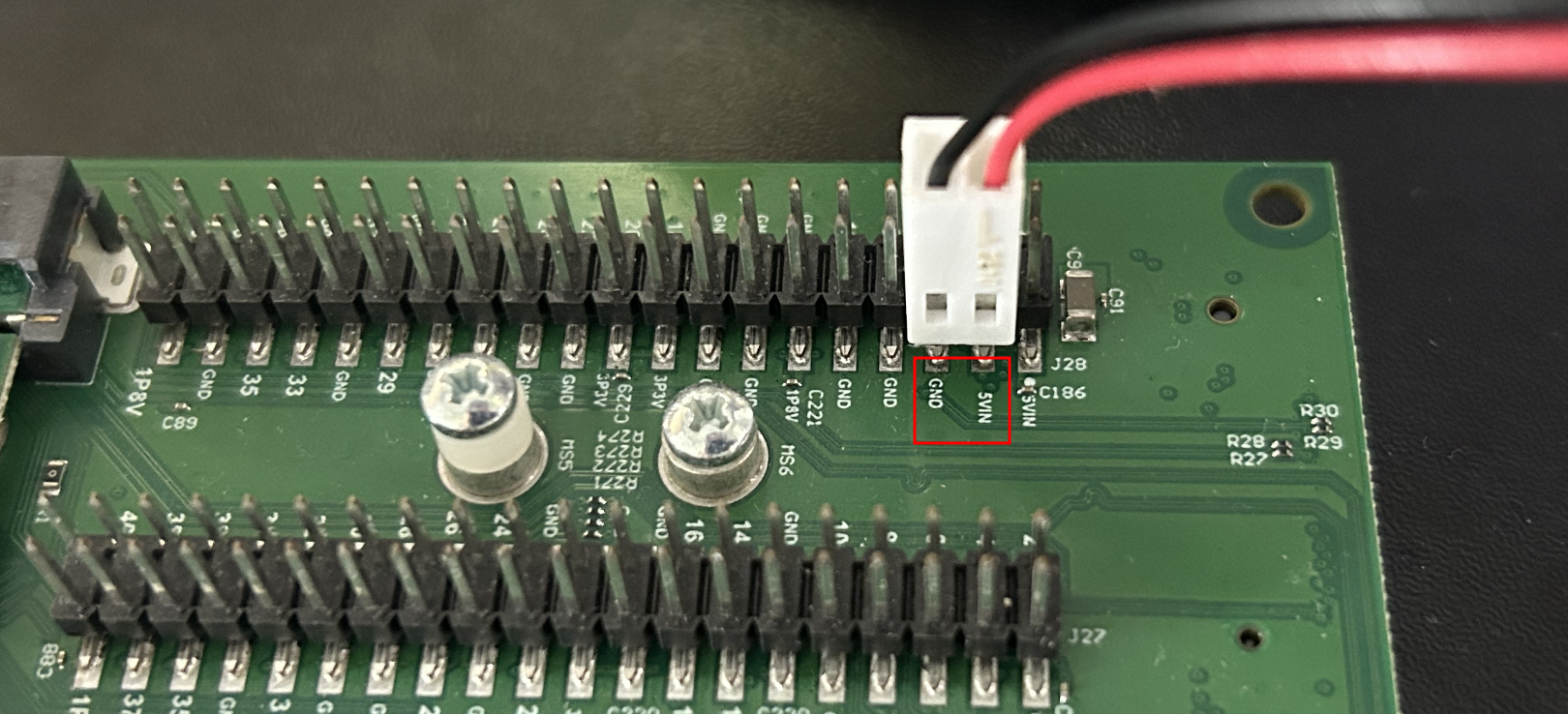

Hardware Connection¶
 |
 |
Software¶
-
Burn the Image¶
Note
The following steps are based on the Ezurio SMARC carrier board and Arducam IMX678 MIPI xISP Camera module.
Image burning tutorial
-
Set Device Tree¶
Enter U-boot mode and set device tree
setenv fdt_file imx8mp-nitrogen_smarc-pivariety.dtb
saveenv
reset
-
Resolution&Frame Rates¶
Output Format
v4l2-ctl --list-subdev-mbus-codes -d /dev/v4l-subdev2
Resolution
v4l2-ctl --list-subdev-framesizes code=0x200f -d /dev/v4l-subdev2

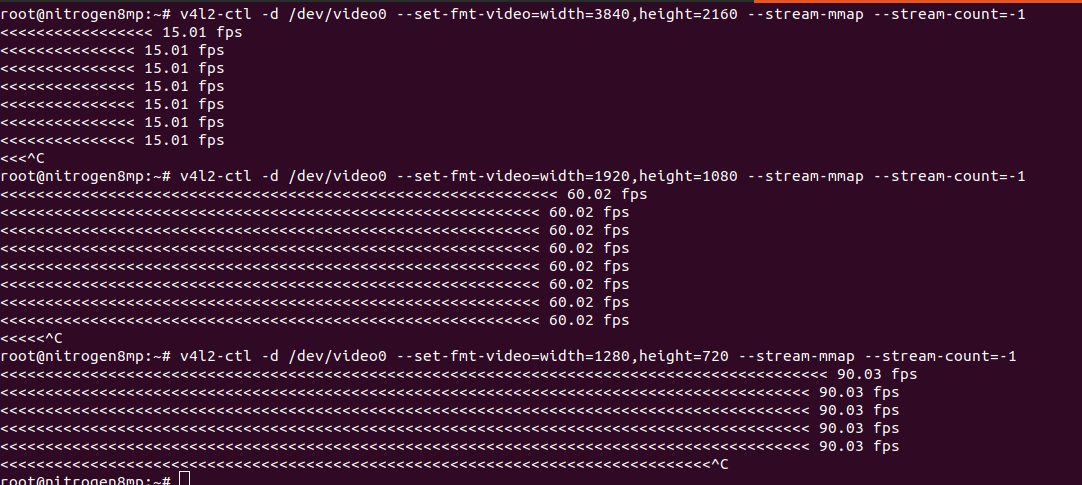

Frame Rates
-
Preview¶
gst-launch-1.0 -v v4l2src device=/dev/video0 ! "video/x-raw,width=3840,height=2160" ! waylandsink
-
Save Image¶
gst-launch-1.0 -v v4l2src device=/dev/video0 ! "video/x-raw,width=3840,height=2160" ! identity sync=true ! jpegenc ! multifilesink location="image.jpg"
